POWER PUSH PARTS English Monkey125(JB02)

It is a bargain kit that the FI CON TYPE-e (injection controller) ,Big throttle body Kit(with Air filter) and the spark plug is attached to the e-stage bore up kit 143cc
Sports camshaft(N-15/Decompression less cam shaft) attached.

商品詳細

Hyper e-Stage Bore Up Kit(with Big throttle body)

Hyper e-Stage Bore Up Kit(with...

税込価格 147,620 円
対応車種 Monkey125(JB02)
:Monkey125(JB02-1000001〜)
:Monkey125(Thai model/MLHJB02)
品番 01-05-0586

Hyper e-Stage Bore Up Kit(with Big throttle body) e-Stage Bore Up Kit 143cc

■ e-Stage Bore Up Kit 143cc

By changing the piston and cylinder, the displacement can be changed from 124cc to 143cc.
By installing the FI CON TYPE-e(injection controller) and big throttle body simultaneously, can be obtained an output characteristic that is different from the stock engine.
Adopt castings piston and Aluminum Cylinder (Iron Sleeve).
The surface of the cylinder is painted silver.
※The cylinder does not have an oil outlet boss to the oil cooler.
Bore diameter 56mm, compression ratio 11.2:1, stroke 57.9mm (Stock)

Hyper e-Stage Bore Up Kit(with Big throttle body) Sports camshaft(N-15/Decompression less cam shaft)

■ Sports camshaft(N-15/Decompression less cam shaft)

Output of the high-speed range is improved by being mounted on a stock cylinder head.

Hyper e-Stage Bore Up Kit(with Big throttle body) FI CON TYPE-e

■ FI CON TYPE-e(injection controller)

Can be attached to a genuine ECU with a couplar on.
Various 3D correction maps for our special engine parts are initialy set and can be easily upload with personal computer or smartphone.
The built-in map can be finely adjusted for each opening throttle and engine speed.
Fuel control adjusting can be made while monitoring your PC or smartphone with bluetooth.

A computer or smartphone that meets the conditions is required to use this product.
Please see the product details page.

■FI　CON TYPE-e details page
Click here for FI CON TYPE-e details page

Hyper e-Stage Bore Up Kit(with Big throttle body) Big throttle body Kit

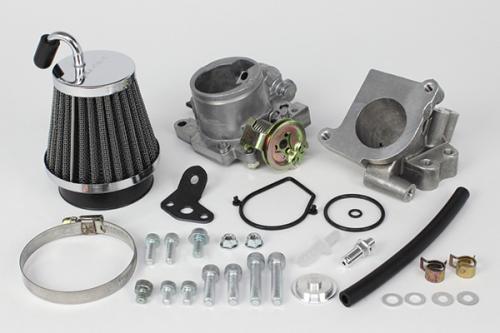

■ Big throttle body Kit(Φ34)(with Fuel injector)

Higher output is achieved on wide powerband compared with stock throttle body.

Big throttle body Kit comes with a air filter and fuel injector(00-00-0487).

■ Note

■Parts that need to be installed at the same time.
Crankshaft support adapter for GROM(JC61-1300001〜/JC75-1000001〜)・MSX125SF・Monkey125 Item NO.01-10-0138

A computer or smartphone that meets the conditions is required to use this product.
Please see the product details page.

■FI　CON TYPE-e details page
Click here for FI CON TYPE-e details page

■FI CON TYPE-e software and application download page
Click here for FI CON TYPE-e software and application download page
