POWER PUSH PARTS English Monkey125(JB02)

Super head 4V+R(1 cam 4 valve)
By adopting one cam 4 valve cylinderhead, achieved a manageable output characteristics and high output !!

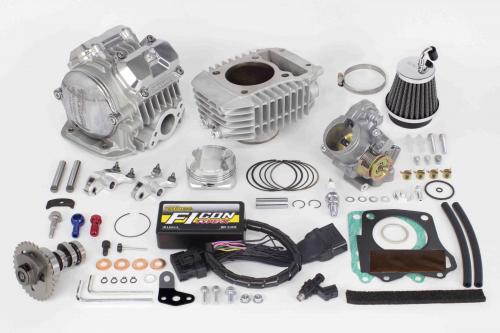

It is a bargain kit that the FI CON TYPE-X (injection controller) ,Big throttle body Kit(with air filter) and the spark plug is attached to the Super head4V+R Bore Up Kit 181cc.

商品詳細

Super head 4V+R Combo Kit181cc(with Big throttle)

Super head 4V+R Combo Kit181cc...

税込価格 277,200 円
対応車種 Monkey125(JB02)
:Monkey125(JB02-1000001〜)
:Monkey125 Thai model(MLHJB02)
品番 01-05-0608

Super head 4V+R Combo Kit181cc(with Big throttle) Combustion chamber configuration

■ Super head 4V+R(1 cam 4 valve)

By increasing to two each in and ex valves to expand the valve curtain area, achieved a high intake and exhaust efficiency.
Since designed an original cylinderhead shape for 4 valve, achieved high output.
Combustion chamber is finished with high accuracy by NC machining.
The surface of the cylinder head is unpainted silver.
Adopted an aluminum die-cast barrel polishing finish to the L. cylinder head side cover,breather cover and inspection cover.

Super head 4V+R Combo Kit181cc(with Big throttle) Piston

■ Camshaft/Cylinder/Piston

■Auto decompression camshaft
Without imposing a strain on the cell motor, it enables smooth engine start-up.

■Adopted all-aluminum ceramic plated cylinder.
Bore diameter: 63mm Stroke 57.9mm (Stock)
all-aluminum ceramic plated cylinder has excellent durability, tightness, heat dissipation.
Since equipped with oil outlet to the cylinder, it is possible to inhibit the oil temperature rise by purchasing the oil cooler kit separately.
The surface of the cylinder is unpainted silver.

■Aluminum-cast piston
Compression ratio 12.5:1
Adopted a high compression specification
Piston in pursuit of high performance and durability.
Piston top is finished with high accuracy by NC machining.

Super head 4V+R Combo Kit181cc(with Big throttle) Roller rocker arm

■ Valve/Valve spring/Rocker arm

■Intake and exhaust efficiency of SOHC premier class
Valve diameter:IN:25mm×2 / EX:21.5mm×2
Valve stem shaft diameter: IN, EX both 4.5mm

By adopting the unequal pitch valve spring, to prevent surging at high rotation.

■Forged aluminum roller rocker arm
It is possible to reduce the frictional resistance between the camshaft, achieved the smooth operation !!

Super head 4V+R Combo Kit181cc(with Big throttle) Auto decompression camshaft

■ Super head 4V+R Combo Kit 181cc

It is a bargain kit that the FI CON TYPE-X (injection controller) ,Big throttle body Kit(with air filter) and the spark plug is attached to the Super head4V+R Bore Up Kit 181cc.

Super head 4V+R Combo Kit181cc(with Big throttle) FI CON TYPE-X

■ FI CON TYPE-X・Big throttle body Kit

■FI CON TYPE-X(injection controller) for Super head4V+R
Injection controller that can be installed on a genuine ECU with a simply connector on.
Preset MAPs that have been set by our factory to match the our basic specifications, so simply select the MAP of your bore-up kit or throttle body with your cellphone or PC to complete the basic operation to get running.
In addition, ignition timing, acceleration pump, dwell time, invalid injection time, ignition timing temperature correction, engine temperature correction, vaporization time can be set.
Based on the preset MAP, that can be set according to your preference and creating a new MAP to enjoyed even expert customers.
It can be connected to a PC or cellphone while the engine is running, allowing you to monitor the engine temperature in addition to the tachometer screen and cost safety graph screen that are very convenient for mapping.
You can choose from two types of mode for PC software and cellphone application, from EASY mode or EXPERT mode respectively.
EASY mode-The stock ECU ignition map can be used.
Can be set advance or retard based on stock ignition timing.
You can select from 14 preset data.
EXPERT mode
Ignition timing will be set without performing advance / retard (crank angle of BTDC) for the stock ignition MAP. In the EXPERT mode, there is an「engine temperature ignition timing correction function」if the engine temperature becomes too high, that corrects that the vaporization time and combustion time change to avoid affects the ignition timing.
Preset data is available from 9 patterns.
In addition, it is equipped 1) rev limit:convenient for engine protection and breaking-in, 2) Pit lane limiter: that is assumed to be used in a pit lane with a speed limit 3)On-time MAP change function :Switch between power mode and fuel consumption mode that can be used from beginners to expert rider.

■FI CON TYPE-X details page
Click here for FI CON TYPE-X details page

■Big throttle body Kit for Super head 4V+R
Higher output is achieved on wide powerband compared with stock throttle body.
Big throttle body:φ34
Big throttle body Kit comes with a air filter and fuel injector(G-2)(05-04-0044).

Super head 4V+R Combo Kit181cc(with Big throttle) Big throttle body Kit

■ Note

■Parts that need to be installed at the same time.
Crankshaft support adapter for GROM(JC61-1300001～/JC75-1000001～)・MSX125SF・Monkey125 Item NO.01-10-0138

■FI CON TYPE-X(injection controller) for Super head 4V+R
Only for Monkey125(JB02)

Only for Super head 4V+R.
Can not be used with Stock Cylinder head.

Since the HID kit or other company's LED headlight can cause failure by high voltage noise, please do not use simultaneously.
Ignition system of goods outside the company (ignition coil and plug cord) is associated with the up of the ignition voltage, please do not use it can cause malfunction or failure of the product due to the increase of radiation noise.
The power generator of goods outside the company due to differences in shortages and voltage waveform of the power generation amount, it will be the cause of failure, please do not use.

■FI CON TYPE-X details page
Click here for FI CON TYPE-X details page

■FI CON TYPE-X software and application download page
Click here for FI CON TYPE-X software and application download page

■Click here for graph pdf data download
graph pdf data download
